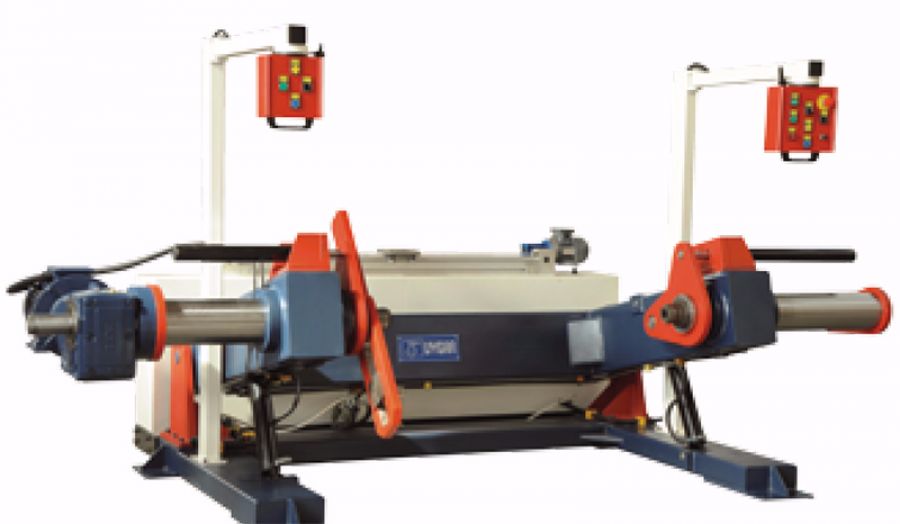

Self-Traversing Pay-Off/ Take-Up

Self-Traversing Pay-Off/ Take-Up

1. The transmitter / collector body has a structure consisting of columns with rotating shafts, plates and bearings of parts
2. The body supported by U profile is combined with electric arc welding and the bearings are formed.
3. Reel holding and lifting movement is driven by mechanical system
4. System operation The motor and speed reducer are driven by a speed control system and AC / DC servo motors. In case of emergency, the pneumatic disc brake ensures immediate stopping.
5. With the elements mentioned above, it has a structure that forms a solid, reliable integrity with electrical, pneumatic attachments.
6. AC / DC servo motors are selected according to customer requirements
7. The operator panel of the Mechanical Emitter / Collector is designed for easy use of automation

Type

Code

Max. Reel diameter mm Ø

Min. Reel diameter mm Ø

Reel Lifting System

Motor power

Line Speed






Self- Traversing



2000

1000






Mechanical Motorized
System





11-25 kW





0-250 m/min



2200

1250

UMSTP
UMSTT

2600

1250



3000

1250



3600

1400



4000

1400
