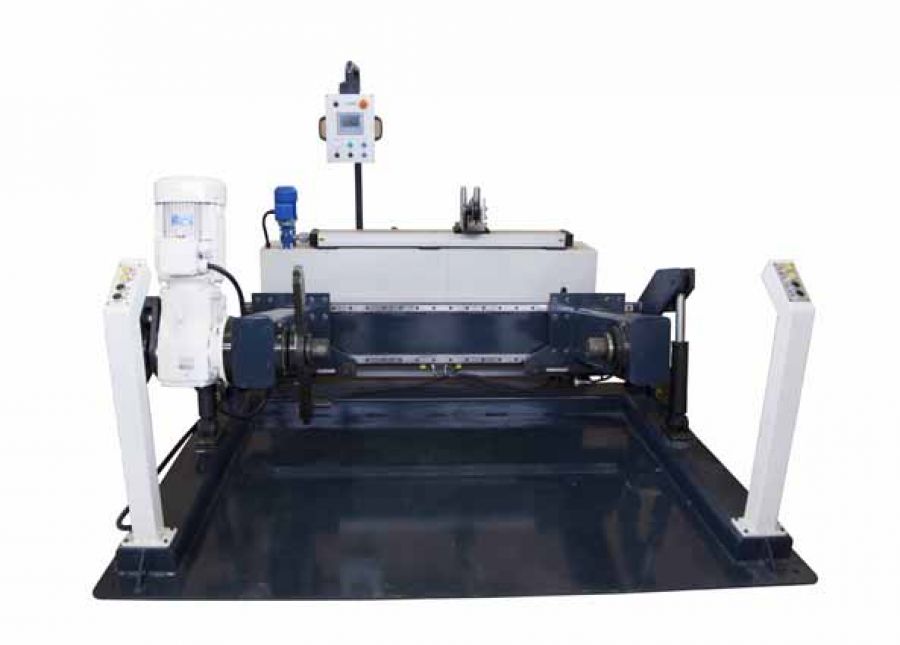

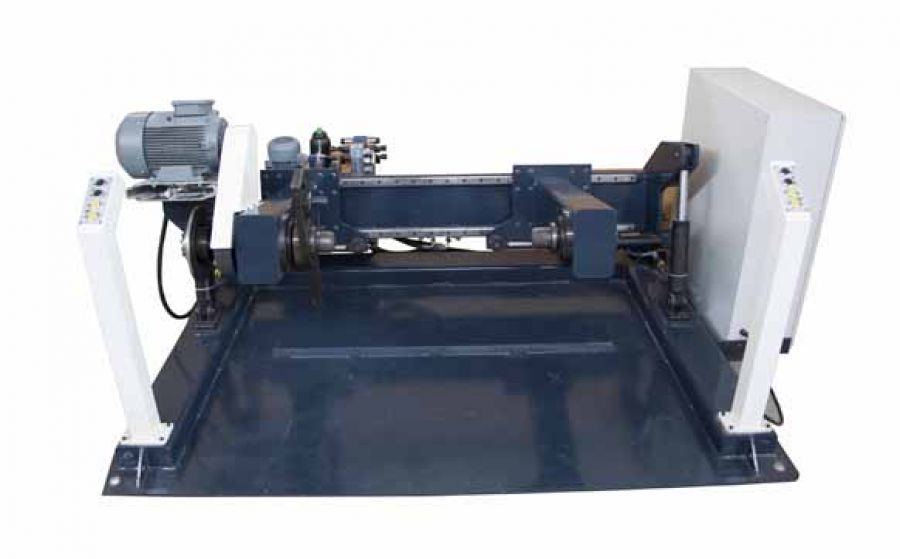

FORK TYPE PAY-OFF/ TAKE-UP

• Pay-Off/Take-Up frames are consisting of a revolving shaft; the columns which are containing the beds are made of sections and plates

• The pintle housing is constructed by means of electric arc welded sections, which forms a supported "U- section"

• The reel gripping and Lifting motion is driven by a hydraulical/Mechanical lock and by a hydraulic&/mechanic system

• The system is run by means of AC/DC servo motors and the speed control is made via a pintle with speed reducer and motor. In case of emergency the pneumatic disc brake provides instant stop.

• The afore mentioned items are constituting an entirety between electric, pneumatic and hydraulic attachments and robust safety shields.

• AC/DC servo motors are chosen in accordance to the customer needs

• The automation of the hydraulic/mechanic Pay-Off/Take-up and operator panel is designed for easy usage

• Just for take-up: The movement of the traverse is provided by an AC motor and moving slides.
